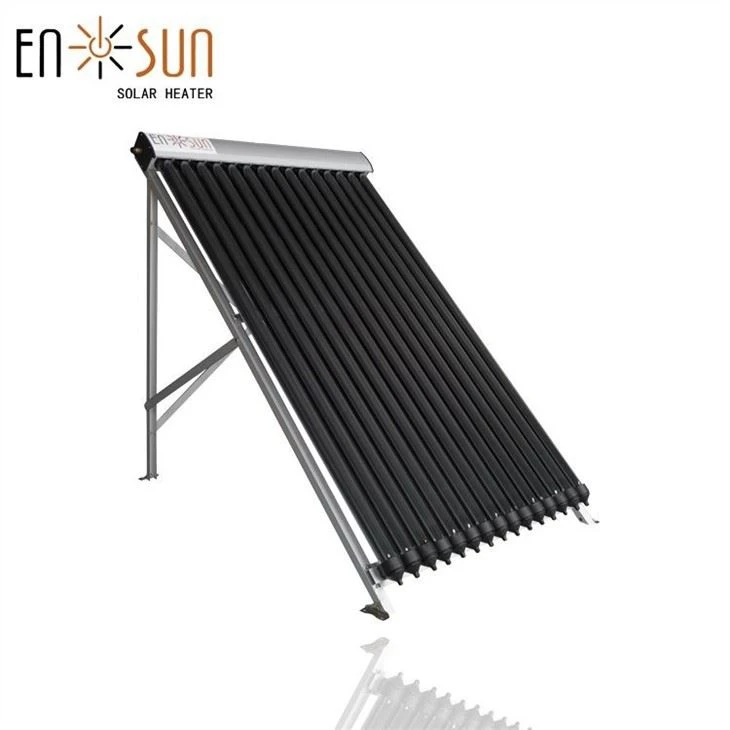

Evacuated Tube Solar Collector

DESCRIPTION

A solar collector is a device that collects and/or concentrates solar radiation from the Sun. These devices are primarily used for active solar heating and allow for the heating of water for personal use.

Evacuated tube collectors are the most efficient but most costly type of hot water solar collectors. These collectors have glass or metal tubes with a vacuum, allowing them to operate well in colder climates.

Heat pipe collectors are highly efficient, easy to install, suitable for cold areas, and are welcomed by consumers.

MODEL VIEWINGS

IMPORTANT FEATURES

Heat pipe solar collector is composed of manifold, installation frame, vacuum tube and heat pipe

Efficiency rate is higher than flat panel solar collector

Easy for installation

Suitable for cold areas because there is no water in vacuum tubes

High pressure heat pipe solar collector is a device that absorbs solar radiation energy and transfers heat to the working medium. It is a special heat exchanger. The working medium in the collector exchanges heat with the distant sun. This kind of solar collector is composed of heat pipe, vacuum tube, installation frame,manifold and accessories. After the circulation pipeline and the heat preservation water tank are added, it is able to absorb solar radiation heat and raise the water temperature.

High pressure heat pipe solar collectors are the basic components for solar low-temperature heat utilization, and they have always been the leading products in the world's solar energy market. This kind of solar collector has been widely used in many fields such as domestic water heating, swimming pool heating, industrial water heating, building heating and air conditioning.

APPLICATION CONDITIONS

● Home

● Factory

● Hotel

● Hospital

The collector, also called the collector plate, is the name of the solar energy industry for the outdoor heat collection components of solar water heaters. A solar collector with good performance is one of the key equipment of solar air-conditioning. Its main function is to collect the heat energy in the sunlight and pass it to the water tank through the connecting pipeline to heat the cold water in the water tank. [1] Solar energy is the most eye-catching clean energy among new energy and renewable energy. It is conducive to energy conservation and environmental protection. It can be said that the mainstream of global energy in the future is solar energy, and solar energy utilization technology is getting more and more attention. . The solar collector is the most important part of the solar thermal utilization, and its performance plays a decisive role in the success or failure of the entire system [1]. According to the basic characteristics of whether it is condensing or not, it can be divided into two categories: non-condensing and condensing.

SPECIFICATION DATA

Manifold Casing Material	Aluminium (grade 3A21)
Frame Material	6063 Aluminum Alloy（1.8mm）
Header Pipe Material	99.93% pure Copper & lead free 45% silver brazing
Heat pipe Specification	Thickness:0.6mm,14mm condensor,(24mm condensor optional)
Fins around heat pipe	Double round aluminum 1.68m
Insulation	Compressed Glass Wool - K = 0.041W/mK
Rubber Seals and Rings	HTV grade silicone rubber
Optimal installation angle	20-70° Vertical, -5° to +5° Horizontal
Maximum Operating Pressure	8 Bar-16psi
Optimal flow rate	0.1L/min/tube - 0.026G/min/tube

FAQ

Q1. Minimum Order Quantity

A: USD1000

20GP container is less required

40HQ container is more often.

Q2. Pyament Term

A: 30% deposit to start production

70% balance before container arrive in destination port.

Q3. Do you provide free OEM service?

A: Yes, customer brand logo will be printed on pacakge cartons, flat panel and installation manual.

Q4. Delivery Time

A: Sample order >USD1000, send out within 7 days

Full container order, send out within in 10 days.

Q5.Warranty

A: 5 years for complete system

Q6.Quality certification

ISO CE Solar Keymark IEC

Inspection company from a 3rd party is welcomed

Q7.How many sets can be loaded into container?

As per different container type, 20gp,40ft and 40hq,

good calculation is provided as solar heater quantity.

Evacuated Tube Solar Collectors are extremely efficient and cost-effective; particularly in colder climates, where other solar collector designs suffer from reduced performance and a variety of other problems due to their lack of freeze protection. Evacuated Tube Collectors, unlike other designs, are extremely well-protected from low temperatures, leading to efficiencies of over 70% even in sub-zero climates, ensuring your water stays hot no matter how cold the weather is.



Why choose us?

• We offer customization options to meet the unique needs of our customers.
• We attach great importance to diversity, including recognizing, accepting and appreciating differences, and using them to accelerate the development of the company.
• We take pride in the durability and longevity of our products.
• We adhere to the concept of green development, continuously carry out environmental protection upgrading and transformation, and continuously improve the capacity and level of ultra-low emission.
• We are committed to responsible and sustainable manufacturing.
• Adhering to the traditional spirit of dedication and perfection, the company will continue to carry the banner of revitalizing the national industry, take the lead and work hard.
• We understand the importance of customer feedback and strive to improve based on customer suggestions.
• We know that talents are the key to our company's development, and actively recruit and train outstanding talents for the company's development efforts.
• Our experienced staff is available to answer any questions you may have.
• We are committed to the professional design and manufacturing of Evacuated Tube Solar Collector, and have accumulated rich production experience and product resources.
