Pvt Hybrid

DESCRIPTION:

PVT is a revolutional solar technology, with ENSUN SOLAR exclusive patent. It perfectly integrates double functions of electricity generation and water heating.

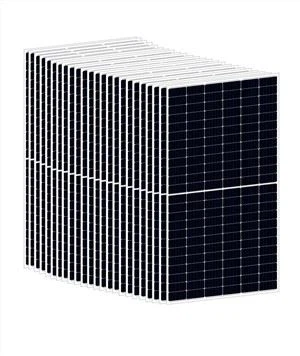

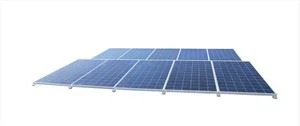

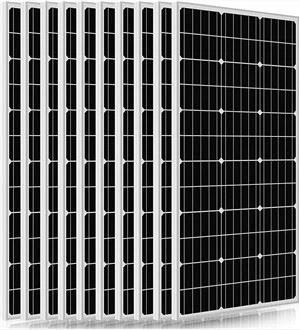

A single PVT panel is composed of PV panel(tempered glass, solar cells, EVA and seal board), heat conduct pipe, heat exchange plate, insulation(rock wool) and alloy frame. A PVT system is usually equipped with a pressurized water tank, a controller and a water pump.

PV panels convert sunlight into direct current (DC) electricity for use in homes, businesses and anywhere electricity is needed. At the same time, the heat conduct pipes will turn the remaining heat energy into hot water.

FEATURES:

1) PVT systems generate solar heat and electricity basically free of direct CO2 emissions and are therefore regarded as a promising green technology to supply renewable electricity and heat to buildings and industrial processes.

2) PVT systems combine the generation of solar electricity and heat in a single component, and thus achieve a higher overall efficiency and better utilization of the solar spectrum than conventional PV modules.

WORKING PRINCINPLE:

Photovoltaic cells typically reach an electrical efficiency between 15 % and 20 %, while the largest share of the solar spectrum (65 % - 70 %) is converted into heat, increasing the temperature of PV modules.

PVT panels, on the contrary, are engineered to transfer heat from the PV cells to a fluid, thereby cooling the cells and thus improving their efficiency. In this way, this excess heat is made useful and can be utilized to heat water or as a low temperature source for heat pumps, for example.

Most photovoltaic cells (e.g. silicon based) suffer from a drop in efficiency with increased cell temperatures. Each Kelvin of increased cell temperature reduces the efficiency by 0.2– 0.5 %. Therefore, heat removal from the PV cells can lower their temperature and thus increase the cells' efficiency. Improved PV cell lifetimes are another benefit of lower operation temperatures.

Electricity generation efficiency VS Heating efficiency

• The lower the cold-water temperature of the main, the better the cell electrical efficiency.

• The bigger the water storage tank, the better the cell electrical efficiency.

• The higher the consumer water demand, the better the cell electrical efficiency.

• When there is a peak in the hot water demand from the consumer, the electrical efficiency of the cell also peaks.

• The biggest impact on the electrical efficiency is the water draw to the consumer.

• With increasing temperature of the fluid at the inlet of the PVT panel, the instantaneous electrical power decreases, the instantaneous thermal power also decreases, but the net instantaneous thermal power added to the tank increases.

SPECIFICATIONS:

APPLICATIONS:

● Home

● Business: Hotel/Hospital/Factory

Optional Acessories:

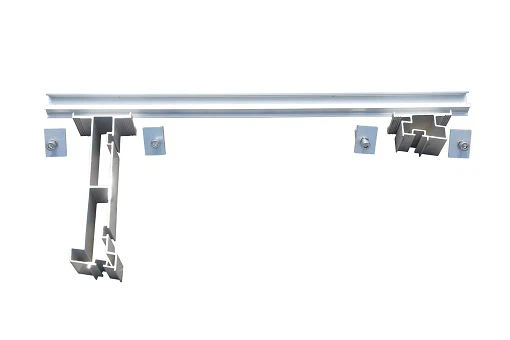

1. Installation Frame

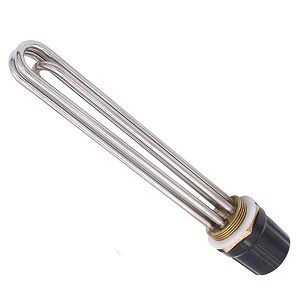

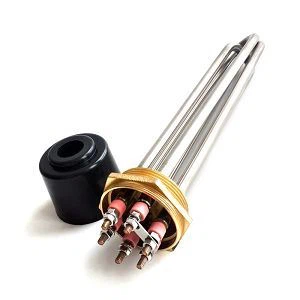

2. Electrical Heater

3. Inverter

A simple PVT system is shown the below figure. It consists of a PVT collector connected to a storage tank with a coiled heat exchanger, a circulation pump, an inlet for the cold water main, and outlet to the consumer and an inverter/regulator for the electrical energy.

PVT Systems Projects:

FAQ

Q: Are you trading company or manufacturer?
A: We are professional manufacturer specialized in solar products. And we trade our products with our clients directly.

Q: Can we use our own logo?

A: Yes, we can print your private logo according to your request. Because we've been a professional OEM since 2009.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want.

We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?
A: Now we have more than 1,00 different sizes of products. We have a strong advantage of OEM,

just give us the actual products or your idea that you want, we will manufacture for you.

Q: When can I get the price?
A: Usually we quote within 8 hours after we get your inquiry.

Q: Do you provide sample ? Is it free?
A: If the sample is low value, we will provide the free sample with freight collect.

But for some high value samples, we need to collect the sample charge.

Q: What is your term of payment?

A: 30% down payment before producing

and 70% balance payment before shipping.

Other important factors that inflfluence the cell temperature are the thermal characteristics of the entire PVT system, mainly the temperature of the liquid at the inlet of the panel, which acts as a cooling medium for the cell, and which in turn is based on the temperature of the liquid at the outlet of the tank heat exchanger if we assume negligible pipe losses.

A research gap was found when looking at the systemic analysis of a building connected to a PVT system. Most models found in the literature only considered a numerical model of the isolated PVT panel when carrying out the sensibility analysis. Also, the few studies that looked at the entire system were applied to different solar technologies, such as ST or PV, not PVT panels.

In this given framework, the novelty of this research is the consideration of the entire energy system connected to the PVT panel, including the DHW storage tank and the consumer demand curve, and the investigation of the variation of thermal parameters. The parametric study is done at a system level, focusing on the inflfluence of some of the thermal aspects on the electrical effiffifficiency. As with any cogeneration system, there is a tight relationship between the electrical and thermal production, so it is interesting to see how the electrical efficiency is influenced by the thermal parameters of the system. The consumer demand is also an interesting aspect to investigate, as some demand curves will be more compatible with a PVT system than others.

Why choose us?

• We take every step to ensure that our Solar Hybrid Pvt products are safe, reliable, and efficient.
• We warmly welcome your patronage and will serve our clients both at home and abroad with products of superior quality and excellent service geared to the trend of further development as always.
• Our Solar Hybrid Pvt products are specifically designed to withstand harsh environmental conditions.
• After years of development and market inspection, we have successfully created an excellent corporate image for many well-known companies at home and abroad. The quality and reputation of our products have been praised by customers at home and abroad and highly praised by Pvt Hybrid professionals. Appreciate.
• As a supplier and manufacturer, we offer competitive pricing on all of our products.
• We constantly create competitive, high-quality products, to serve customers, so as to win customers' trust and affirmation.
• We offer personalized support and advice to help our customers find the perfect solar hybrid products for their needs.
• We insist on open-mindedness, industry-wide vision and international orientation, benchmarking with first-class and continuous improvement.
• We offer a wide range of customization options for our Solar Hybrid Pvt products, including size, output, and capacity.
• We have been constantly improving the quality of our Pvt Hybrid, thereby enhancing the brand image and the company's reputation.
