Quality and Quantity Assured Good Reputation Solar Water Heaters Hot Selling 304/316L Stainless Steel Copper Coil High Pressurized Solar Water Heater

We believe in innovation and development of the vacuum solar collector tubes, parabolic solar panels, Flat Plate Solar Collector as the driving force behind our continued growth. Our company constantly absorbs and draws lessons from the world's advanced concepts and management methods, and strives to realize the integration of enterprise management with international standards. We actively participate in market competition and uphold the concept of cooperation for development and cooperation for win-win situation. A safe and healthy production environment is the foundation of our development and reflects our responsibility and commitment to society. We will provide our customers with excellent after-sales service and low cost, we will wholeheartedly provide our customers with excellent pre-sale and after-sale service.

DESCRIPTION

Pre-heated solar water heater

1. Material of Inner Tank: SUS304-2B Stainless Steel, thickness: 0.4mm, 0.5mm, 0.6mm

2. Material of Outer Tank: SUS3042B/BA , thickness: 0.31mm/0.4mm

3. Copper Coil: Diameter: 12mm, thickness: 1mm

4. Heat Preservation: Polyurethane foam with 55mm thickness

5. Magnetic-controlled Al-N-Al splash all glass evacuated heat-collecting tubes

6. Specification: Φ 58mm*1800mm

7. Material of Support: galvanized steel, thickness: 1.2mm/1.5mm or stainless steel

8. Capacity: 100L-300L

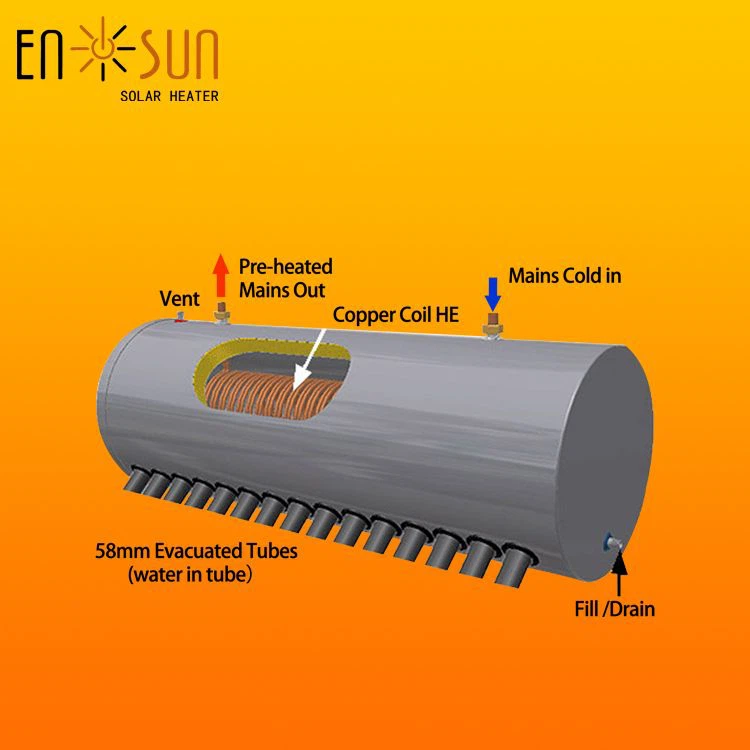

Pre-heated solar water heater working Principle

1. The vacuum tube collector absorb the heat energy to heat the water in heat storage tank.

2. When using the hot water, the cold water flows through the inlet, the copper coil absorb the heat then transfer into the cold water, so that the temperature rise up ceaseless.

3. For the original features of the copper coil, the water temperature of the outlet is close to the water temperature of the water tank(≤ 3C), so the high pressure of the cold water into the copper coil and absorb the temperature, at last the water can be used.

Reference photo

SPECIFICATION SHEET

Steel cutting machine	Tank straight welding machine
Tank inspection machine	Tank storage warehouse
Vaccum tube 3 layers coating	Heat pipe coil

Warehouse Storage

Advantages:

1.Taking advantage of tap water's pressure, hot water with pressure makes you comfortable when you have bath

2.Multifunction:Bathing, washing

3.Low operating cost, one time investment, and permanent benefit.

4.Long heat preservation hours: 72 hours

5.Installation and maintenance are easy

With high-end technical personnel and high-quality team, we can provide customers with perfect and high-quality Quality and Quantity Assured Good Reputation Solar Water Heaters Hot Selling 304/316L Stainless Steel Copper Coil High Pressurized Solar Water Heater and after-sales service in a timely manner. We constantly pursue the perfect quality and strive to provide customers with high-quality products, reasonable prices and perfect services. The company has established the innovation policy of "survive by quality, lead by technology, seek development by innovation".
