PVT Hybrid Solar Panel 450watt 1210watt

Hybrid solar panel is designed for simultaneous generation of electricity and hot water, is combination of pv module and thermal solar collector,in brief is called PVT panel
Send Inquiry
Product Introduction

PRODUCTS ARE TESTED BY SOLAR ENERGY TESTING CENTER OF CHINA AND TUV NORD


Efficiency

Power generation efficiency 20%

Thermal efficiency 50%

Comprehensive energy efficiency 70%


Warranty

10 years process quality assurance

12 years 90% power output guarantee

25 years 80% power output guarantee


Quality & Safety

CE marking

IEC 61215 & IEC 61730

SOLAR KEYMARK

CEC listed

UL 1703

ICC-SRCC


PVT hybrid solar panel is ideal solution for hospital, residential, hotel, commercial, school and swimming pool,

as of hot water supplement, floor heating and electricity generation.

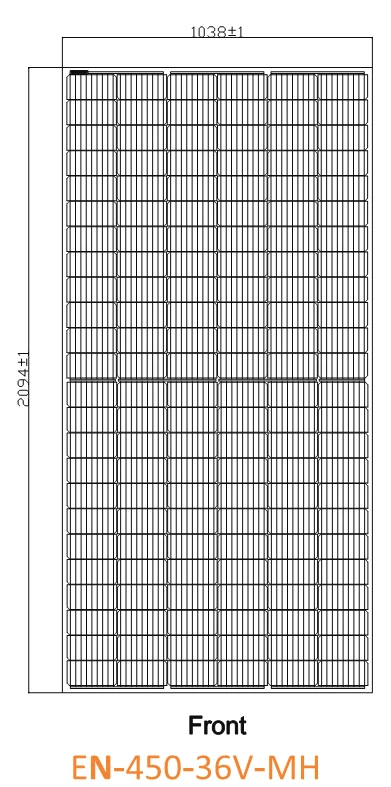

MODEL TYPE

EN-330W36P

EN450-36V-MH

EN540-36V-MH

HEIGHT

1960MM

2094MM

2256MM

WIDTH

992MM

1038MM

1133MM

THICKNESS

41MM

41MM

41MM

WEIGHT EMPTY/FULL OF WATER

35KG/35.9KG

37.5KG/38.5KG

44/45.1KG

CELL NUMBER

72

144

144

WATER CONNECTOR

DN15

DN15

DN15

MAX LOAD

5400MPA SNOW 2400MPA WIND

5400MPA SNOW 2400MPA WIND

5400MPA SNOW 2400MPA WIND

FRAME

ANODISED ALUMINIUM

ANODISED ALUMINIUM

ANODISED ALUMINIUM

PRESSURE UNDERTAKE

0.8MPA

0.8MPA

0.8MPA

PVT hybrid solar panel 450watt 1210watt


6



































2










Why choose us?

  • We offer a wide range of Solar Hybrid Pvt products to meet the needs of our global customers.
  • Our goal is to pursue high standards of products and internationalization. We timely absorb and learn from domestic and foreign advanced technologies for our new use, and constantly integrate and innovate to ensure that our products are constantly updated. We strive to make our PVT Hybrid Solar Panel 450watt 1210watt in the forefront of the industry.
  • We believe that solar hybrid energy is the future, and we are always exploring new ways to improve our products and services.
  • We believe that through our continuous efforts and pursuit, we will be able to achieve mutual benefit and win-win results with our customers!
  • Our Solar Hybrid Pvt products are designed to be both versatile and reliable.
  • With the continuous improvement of PVT Hybrid Solar Panel 450watt 1210watt quality, considerate pre-sale, in-sales and after-sales services, our company fully demonstrates the business integrity and social responsibility of the enterprise.
  • Our Solar Hybrid Pvt products are competitively priced, without sacrificing quality or performance.
  • We are committed to revitalizing the company's development by science and technology, and strive to develop new PVT Hybrid Solar Panel 450watt 1210watt.
  • We believe that sustainable energy solutions are important for the future, which is why all of our products are designed with the environment in mind.
  • We have reasonable product structure, professional product development and manufacturing technology, stable quality performance and perfect management system.

Hot Tags: pvt hybrid solar panel 450watt 1210watt, China pvt hybrid solar panel 450watt 1210watt suppliers, manufacturers, factory, solar panels for heating hot water, pressure heat pipe solar water heater, off grid hot water systems, solar water warmer, solar pv water heater, feeder tank for solar water heater
